Foldable Bike
SolidWorks design for one of my two bike, Spring 2022
This is a daily commuter when I was back in Macau, assemble by me with stylish Dahon frame and high-end components
CAD Concept versus Reality:

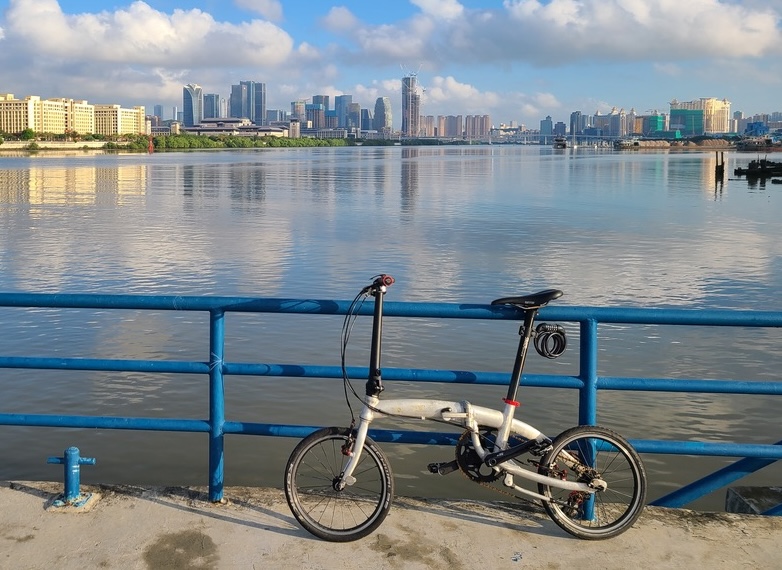

Left: CAD concept | Right: The real bike in Coloane Pier (UMacau in sight)
SolidWorks Renders
List of Components and Subassemblies in SolidWorks
| Name of Component | Function and Information |
|---|---|
| Steering rod | One that can be rotated to determine the forward direction |
| Frame | Frame body, foldable |
| Front Fork | Part of the steering system, used to hold the front wheel |
| Saddle | For people to sit |
| Chain wheel and the Chain | Should be installed on Crank, link the freewheel in the back through the chain |
| Pedal | Used to apply force |
| Crank | The lever connecting the pedal and the bottom bracket, transmits the pedaling force to the chain |
| Front wheel | Wheel frames and tires |
| Rear wheel | The wheel is connected to the freewheel |
